    72-1500F-00: Aftermarket Kohler MPAC 1200 and 1500 Replacement GM93604 GM85884

    Thumbnail Filmstrip of 72-1500F-00: Aftermarket Kohler MPAC 1200 and 1500 Replacement GM93604 GM85884 Images

      Purchase 72-1500F-00: Aftermarket Kohler MPAC 1200 and 1500 Replacement GM93604 GM85884

      SKU: 72-1500F-00
      72-1500F-00: Aftermarket Kohler MPAC 1200 and 1500 Replacement GM93604 GM85884

      $1,785.00





      This replacement is for MPAC controllers that have the USB port on the FRONT keypad panel. Please ensure you are buying the correct version using the pictures below.

      Flight Systems is proud to offer this drop-in replacement for the Kohler MPAC 1200 and 1500 ATS controller board.
      This board replaces part numbers: GM93604, GM93605, GM93607, GM46733, GM85884-1, GM85884-2.

      The Flight Systems Replacement for the Kohler MPAC 1200 and 1500 Board Features:

      • Same footprint as the original board. Easily installs in your existing plastic case.
      • Exclusive feature: Set up by part number! Enter the part number of the transfer switch to automatically set defaults.
      • Completely configurable from front panel. No software required.
      • 16 programmable excercise cycles that will retain their settings even if completely powered down.
      • Improved voltage and frequency sensing circuits provide more reliable operation.
      • Compatible with standard, programmed, and closed transition.
      • Compatible with MODBUS protocol for remote monitoring.
      • Optional accessory boards also available:

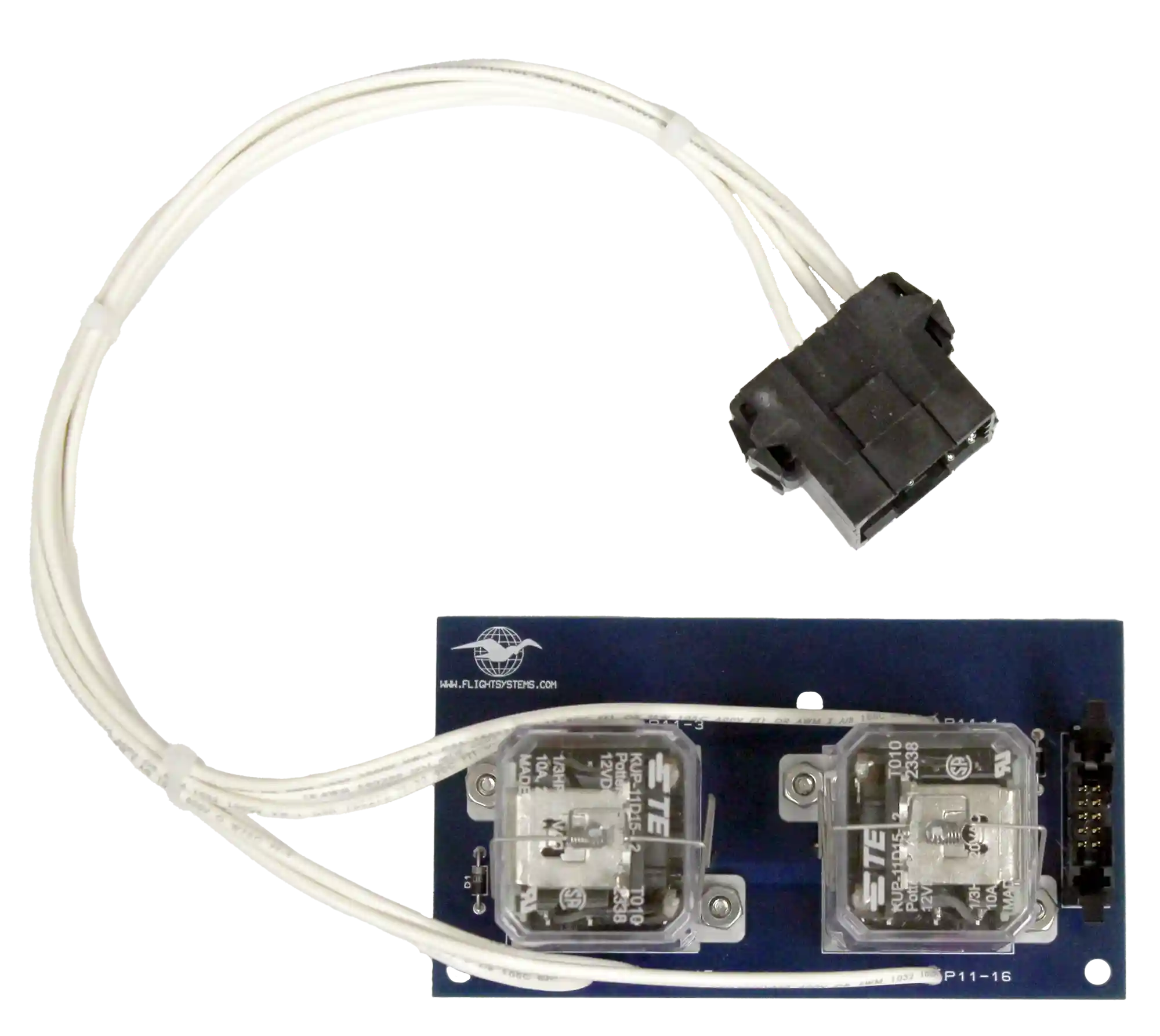

        • GM86367
        GM86367 Relay board for programmed transition (ribbon cable not included, available upon request)
        GM41093
        GM41093 I/O Module


      Please see the chart on the SPECIFICATIONS tab for a full list of supported features.


      Note: There are multiple versions of the original MPAC board. Click the image below that looks like your current controller:
      1500L
      USB port located on left side of case and no product name on keypad
      1500F
      USB port located behind rubber plug on keypad and product name on keypad
      1000
      No LCD display on keypad. All options are set through LEDs. MPAC 1000 Only
    • Click here to download the operation manual V1.0.1.1. Manual subject to change.
    • Click here to download our firmware update utility.
    • Click here to download the virtual com port drivers if Windows does not recognize the device.
      • Feature Set:
      Fully Supported In Development
      Time and Date
      Time HR:MN X
      Date Weekday:Month:Date:Year X
      Daylight Saving Time   X
      16 exercise cycles
      Loaded/Unloaded X
      Daily, Weekly, Monthly X
      Repeat Rate X
      Duration X
      Start Date X
      Start Time X
      Source 1 Time Delays
      Engine Start X
      Engine Cool Down X
      Transfer Preferred to Standby X
      Transfer Off to Standby X
      Fail to Acquire X
      9 Time-Based Load Controls X
      Load Disconnect Time X
      Load Reconnect Time X
      Source 2 Time Delays
      Engine Start X
      Engine Cool Down X
      Transfer Preferred to Standby X
      Transfer Off to Standby X
      Fail to Acquire X
      9 Time-Based Load Controls X
      Load Disconnect Time X
      Load Reconnect Time X
      Sources
      Phase Rotation X
      In-phase Monitor X
      In-phase Angle X
      In-phase transfer Failure time X
      Voltage Differential X
      Frequency Differential X
      Preferred Source X
      Normal and Emergency
      Single / 3 Phase X
      Nominal Voltage X
      Nominal Frequency X
      Under Voltage Pickup X
      Under Voltage Drop Out X
      Over Voltage Pick Up X
      Over Voltage Drop Out X
      Voltage Debounce   X
      Voltage Unbalance   X
      Voltage Unbalance Pickup   X
      Voltage Unbalance Drop Out   X
      Under Frequency Pickup X
      Under Frequency Drop-Out X
      Over Frequency Pickup X
      Over Frequency Drop Out X
      Frequency Debounce   X
      Main Board / Auxiliary Board Inputs and Outputs
      Inputs 1 - 2 (Main Board) &
      Inputs 1-8 (Auxiliary Board)
      Disabled X
      Bypass Contactor Disabled   X
      Forced to OFF X
      Inhibit Transfer X
      Low Battery Voltage   X
      Peak Shave Mode   X
      Remote End Time Delay X
      Remote Common Alarm   X
      Remote Test X
      Remote Monitor 1-4   X
      Service Disconnect   X
      3-Source System Disable   X
      Outputs 1 - 2 (Main Board) &
      Outputs 1-24 (Auxiliary Board)
      3 Source System Disable   X
      Alarm Silenced   X
      Audible Alarm   X
      Aux Switch Fault X
      Aux Switch Open X
      Common Alarm 1   X
      Common Alarm 2   X
      Contactor in OFF X
      Contactor in Preferred X
      Contactor in Source E X
      Contactor in Source N X
      Contactor in Standby X
      Exerciser Active X
      Fail to Acquire Preferred X
      Fail to Acquire Standby X
      Fail to Transfer X
      Fail to Open Source 1 X
      Fail to Close Source 1 X
      Fail to Open Source 2 X
      Fail to Close Source 2 X
      Lost Communication   X
      In-phase Monitor X
      Load Bank Active   X
      Load Control Active X
      Load Control 1-9 X
      Low Battery   X
      Non-emergency Transfer   X
      Not in Auto Mode   X
      Peak Shave Active   X
      Preferred Source Available X
      RDO 1-4   X
      Service Disconnect   X
      Emergency Rotation Error X
      Emergency Loss of Phase X
      Emergency Over Frequency X
      Emergency Overvoltage X
      Emergency Start X
      Emergency Under Frequency X
      Emergency Under Voltage X
      Emergency Unbalanced   X
      Normal Rotation Error X
      Normal Loss of Phase X
      Normal Over Frequency X
      Normal Overvoltage X
      Normal Start X
      Normal Under Frequency X
      Normal Under Voltage X
      Normal Unbalanced   X
      Normal Standby Available X
      Test Mode Active X
      Common Alarms
      Alarm Group 1   X
      Alarm Group 2   X
      System Settings
      Service Entrance   X
      Rated Current X
      Peak Shave TD Bypass   X
      3-Source Engine Start Mode   X
      Source Type
      Utility - Generator X
      Utility - Utility   X
      Utility - Generator - Generator   X
      Generator - Generator   X
      Transition Type
      Standard X
      Programmed X
      Closed X
      Transfer Commit
      Commit X
      No Commit X
      Remote Test Loading
      Loaded X
      Unloaded X
      Passwords
      Settings password X
      Test password X
      Calibration X
      Normal L-N X
      Normal L-L X
      Emergency L-N X
      Emergency L-L X
      Set Part Number - New feature to set defaults based on transfer switch part number
      Transition X
      In-phase Monitoring X
      Frequency Differential X
      In-phase Angle X
      Nominal Voltage Settings X
      Nominal Frequency Settings X
      Single / 3 Phase X
      Update Modules
      Searches for auxiliary boards   X
      Save Settings
      Force settings to memory (not required) X
      Clear all Exercise Cycles X
      Clear all Load Disconnects X
      Default Calibration Settings X
      Factory Defaults Default Setting
      Preferred Source Normal
      Nominal Voltage 240 VAC
      Nominal Frequency 60Hz
      Normal Single Phase
      Emergency Single Phase
      Rated Current 200A
      Operation Utility to Generator
      Passwords 0000
      Engine Start Delay 3 Seconds
      Engine Cool Down Delay 5 Seconds
      Standby to Preferred 60 Seconds
      Preferred to Standby 3 Seconds
      Off to Preferred 2 Seconds
      Off to Standby 2 Seconds
      Fail to Acquire Preferred 60 Seconds
      Fail to Acquire Standby 60 Seconds
      Fail to Sync 60 Seconds
      Fail to Sync Disabled
      Source 1 Fail to Acquire Disabled
      Source 2 Fail to Acquire Disabled
      External Battery Disabled
      Load Controls Disabled
      Daylight Saving Time Disabled
      Inputs / Outputs Disabled
      Transfer Override Disabled
      In-Phase Enabled
      Voltage Differential 5%
      Frequency Differential 0.1Hz
      Phase Angle 10 Degrees
      Rotation Expected ABC
      Normal and Emergency
      Over Voltage Dropout 115% of Nominal
      Over Voltage Pickup 95% of Dropout
      Under Voltage Pickup 90% of Nominal
      Under Voltage Dropout 90% of Pickup
      Under Frequency Pickup 90% of Nominal
      Under Frequency Dropout 99% of Pickup
