    56-5965L-00: Replacement Onan PowerCommand ATS Controller for TS1310 with Flat Buttons

    Thumbnail Filmstrip of 56-5965L-00: Replacement Onan PowerCommand ATS Controller for TS1310 with Flat Buttons Images

      Purchase 56-5965L-00: Replacement Onan PowerCommand ATS Controller for TS1310 with Flat Buttons

      SKU: 56-5965L-00
      56-5965L-00: Replacement Onan PowerCommand ATS Controller for TS1310 with Flat Buttons

      $625.00




      Replacement Board for Onan PowerCommand® TS1310 ATS Controller 300-5965 with flat buttons (see below for samples)


      Features:
      • Drop-in replacement board with same function and fit as original. Installs in your original plastic case.
      • Programmable generator exercise time duration allows 1, 5, 10, 15, or 20 minute exercise time. This is a feature not found on the original!
      • Contains user serviceable backup battery.
      • Monitors utility and generator phase to perform in-phase transfer.
      • Standard and programmed transition capable.
      • Conformal coating to guard against corrosion and moisture intrusion.
      • Built in the USA and backed by a 2-year warranty.
      Note: There are two versions of the original 300-5965 keypad. Click the image below that looks like your current controller:

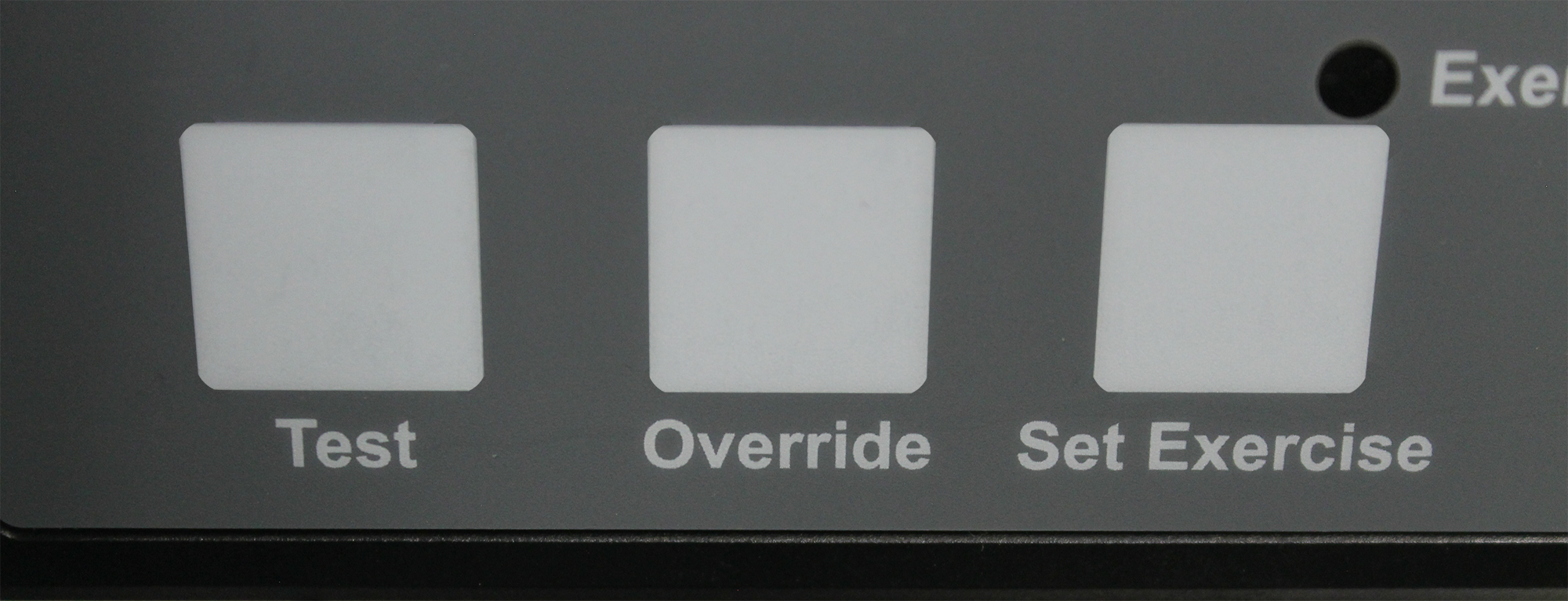

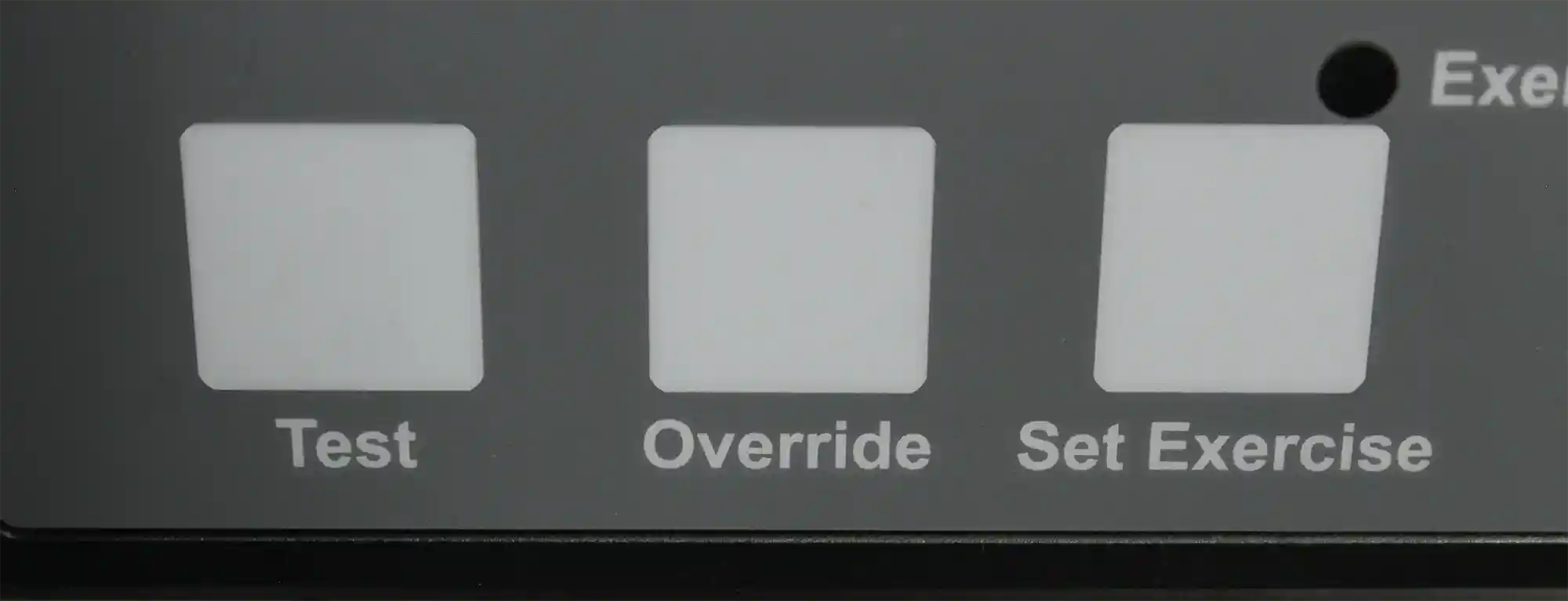

      5965L
      Flat buttons on the keypad. Has no dome shape on button.

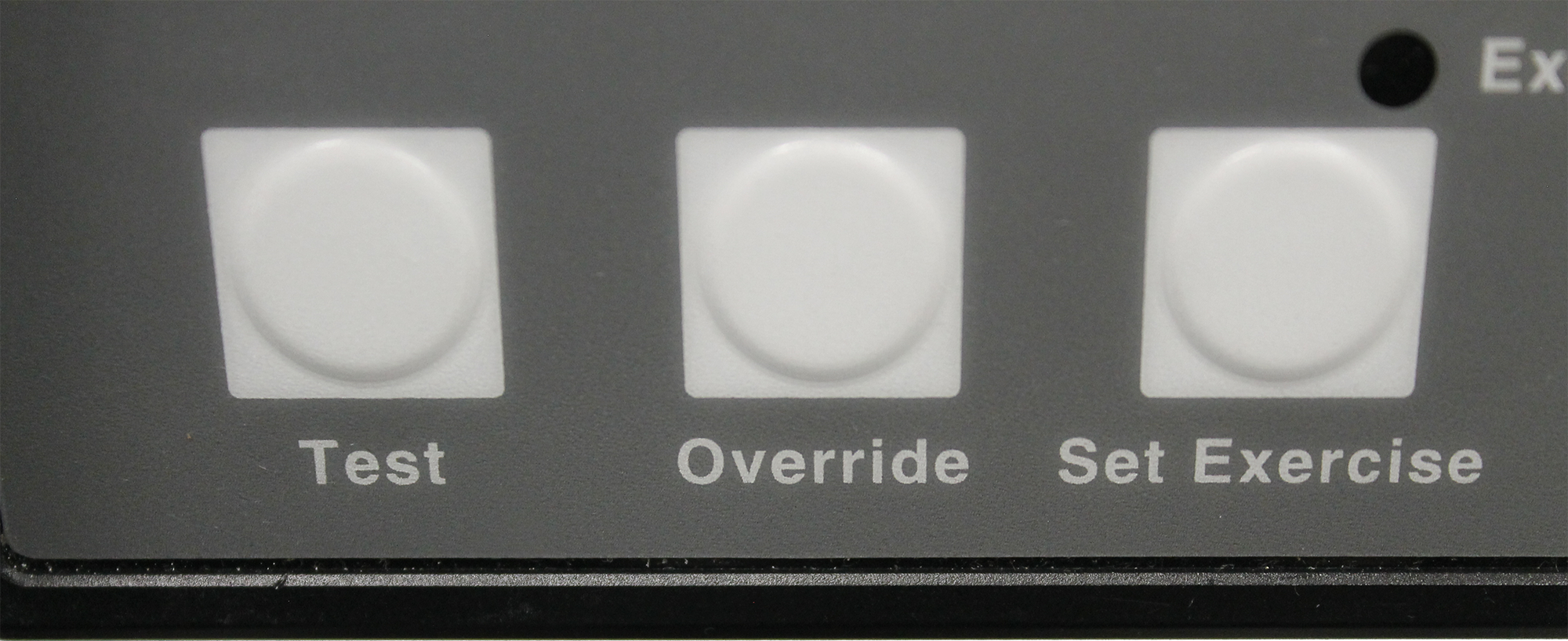

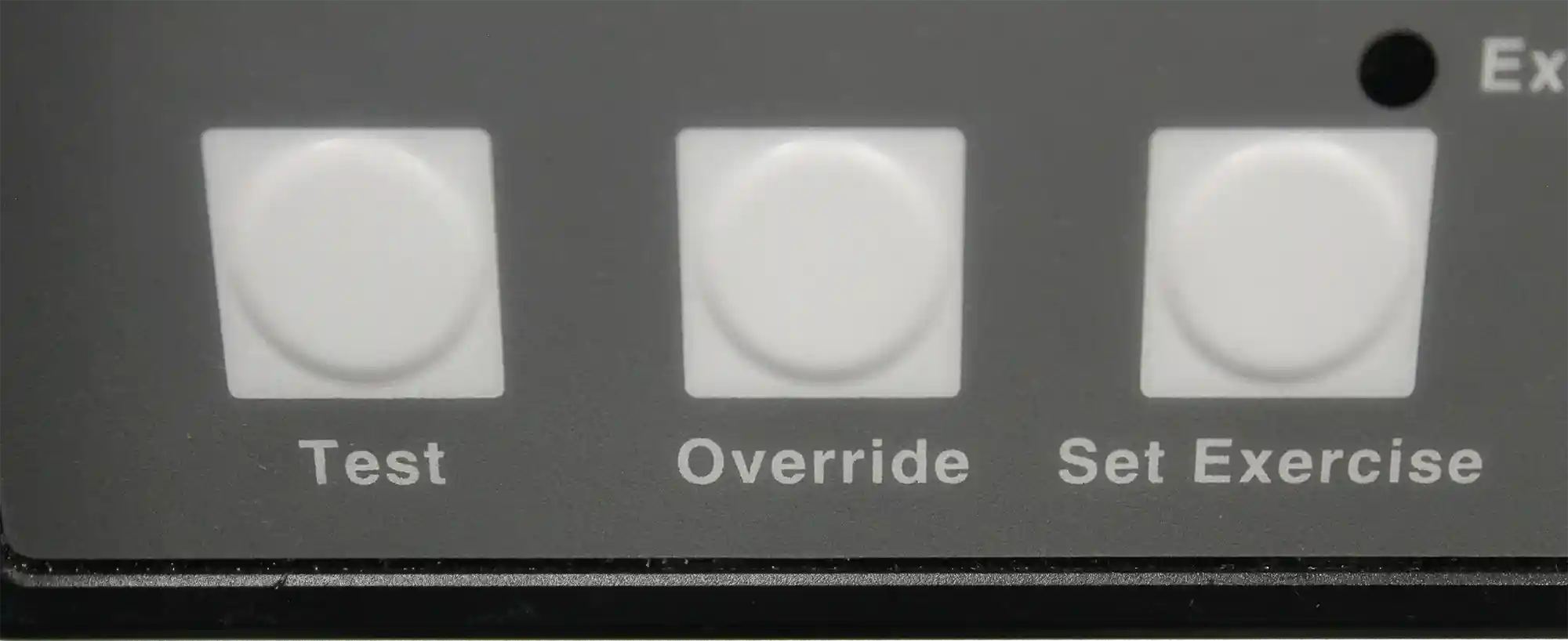

      5965S
      Raised buttons on the keypad. Button has a dome shape in the middle.
    • Click here to download the operation manual.
    • Click here to download our firmware update utility.
    • Click here to download the virtual com port drivers if Windows does not recognize the device.
